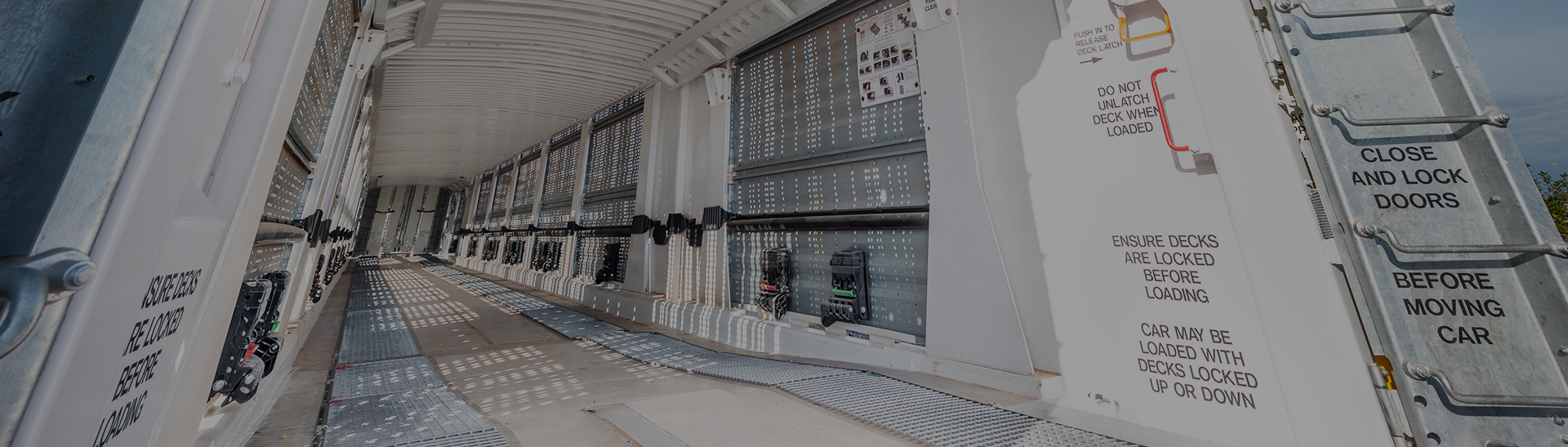

Multi-Max Plus (inside view)

Multi-Max Plus™

Designed with extensive input from major railroads and car manufacturers, Multi-Max Plus™ is the newest auto carrier option from Greenbrier. The Multi-Max Plus™ has been re-engineered to safely transport high-profile trucks and vans with a 20’-2” hinging deck. The deck may be configurable as a bi-level or low bi-level easily, enabling adjustments to be completed on-site at loading locations, saving automotive shippers time and money. The Multi-Max Plus™ rack is fully compatible with existing bi-level fleets and comes equipped with our patented door design that greatly reduces the incidence of theft and vandalism by restricting access to the rack interior and roof.

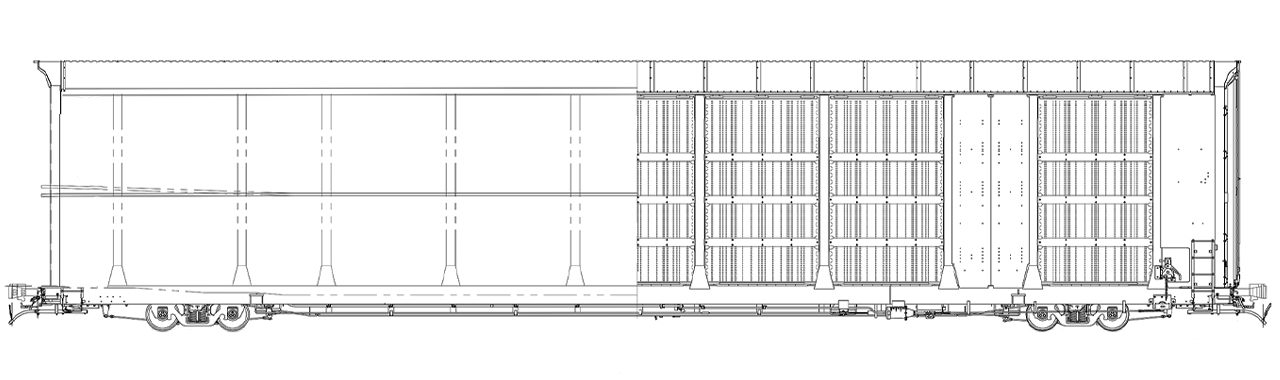

Multi-Max Plus™ technical drawing.

Dimensions

Length, Inside 89′-9.5″
Length, Over Couplers 93′-10″
Door Opening, Width 8′-8.5″
Width, Inside 9′-1″
Width, Extreme 10′-8″
Height, Extreme 20′-2″
Clearance AAR Plate K

Weight/Capacity

Light Weight 101,000 lbs
Load Limit/Capacity 80,000 lbs
Gross Rail Load 181,000 lbs

Curve Negotiability Radius

Uncoupled 180′
Coupled to Base Car 345′
Coupled to Like Car 239′
